REPAIRS PAGE 74

JACKING POINTS

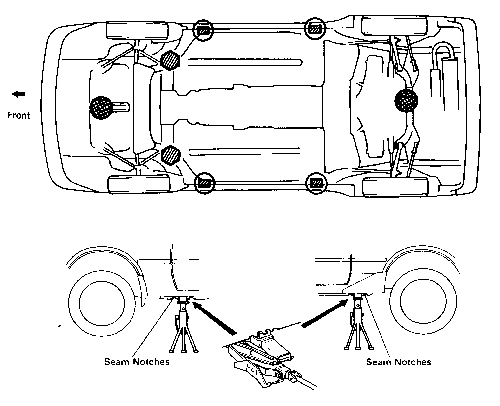

Lift and Support Locations Diagram

Jack Position
Front = Jack up support of front luggage pan
Rear = Rear engine mounting
Pantograph Jack Position
Support Position
Safety stand
