CLUTCH MASTER CYLINDER REBUILD
Some say rebuilding the clutch master cylinder is not
worthwhile, that a rebuilt unit will still leak. However, I believe these
problems occurred because the actual cylinder wall was pitted and in bad shape
no matter how good the new o-rings were. So, if you want, dismantle and inspect
inside the cylinder before purchasing the rebuild kit. However, the rebuild kit

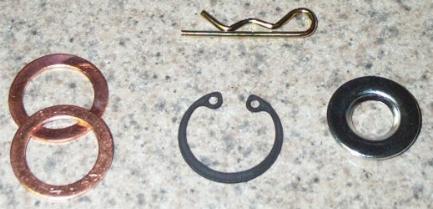

from Toyota is only about $25-$30. Included in the kit is a new piston/spring
assembly, crush washers for the reservoir, clip for the clevis pin, snap ring,
and washer for the push rod:
1 (new piston not pictured)
1) Make sure the clutch hydraulics are emptied.
2) Disconnect the clip and clevis pin from the master cylinder push rod,
holding it to the clutch pedal.

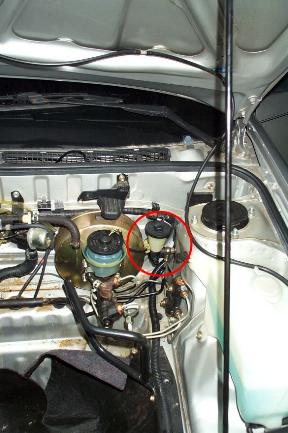

3) Here's the location of the clutch master cylinder under the hood. Remove
the black plastic cover if you have that in place.

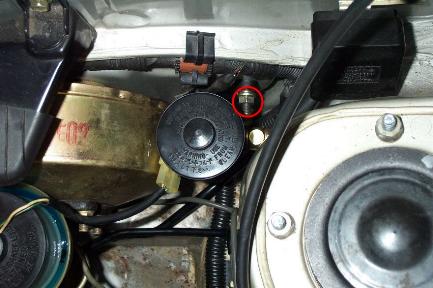

4) Loosen the 2 bolts holding the cylinder to the firewall. Then loosen the
banjo bolt. Pull the master cylinder out from the car. It's quite tight fit in
there, so use the appropriate curse words when trying to loosen these bolts.

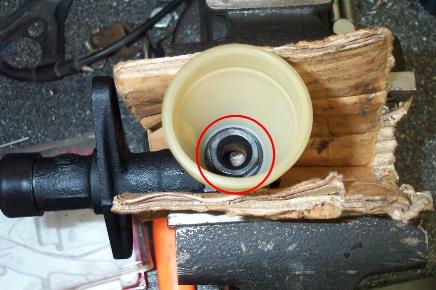

5) Remove the bolt holding the reservoir to the cylinder

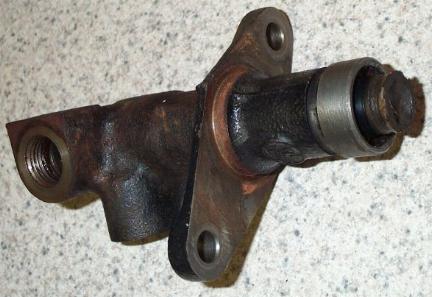

6) Pull back the rubber boot. There's no need to unscrew the clevis from the
push rod. This saves you from having to adjust the clutch pedal after you
reassemble it to the car.
7) Using a set of snap ring pliers (or a screwdriver) remove the snap ring
holding the push rod/washer in place.

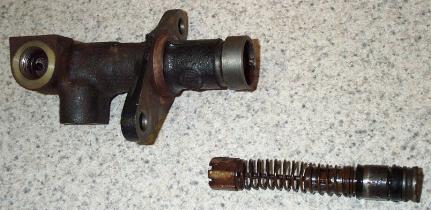

8) Here's what you should have now:
9) Pull out the piston/spring assembly. You may have to use compressed air to
where the banjo bolt attaches to push out the piston. However mine was quite
loose, that it just took a small screwdriver and fingers to get it out.
10) Clean up the inside and outside of the cylinder with denatured alcohol or
fresh brake fluid. If you notice any pits or scrapes in the cylinder, you will

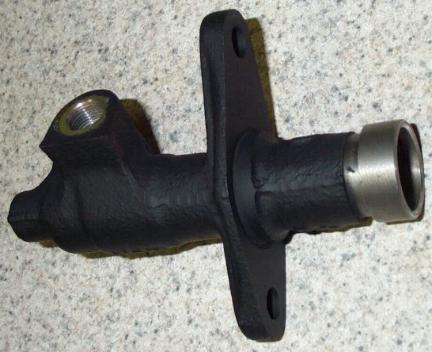

need to replace it with a new one. Here's mine after a cleaning and a fresh coat
of paint:

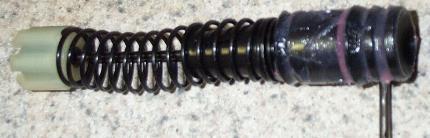

11) Lube up the new piston o-rings, with lithium soap base grease (the stuff
that comes with the caliper rebuild kits):
12) Slide it into the cylinder
13) Pack the end of the piston, where the push rod will rest & pivot,
with grease. Here's how the push rod, washer, and snap ring are inserted. (Your
push rod will probably have the clevis and boot still attached. That's okay)
Using the snap ring pliers attach the snap ring in place:
14) Replace the boot:
15) Replace the reservoir with the new copper crush washers that came in the
kit:
16) Reinstall the master cylinder in the car, opposite its removal. Use new
crush washers for the banjo bolt. Unfortunately, my rebuild kit didn't come with
new ones.
17) Fill and bleed clutch system according to repair manual.
